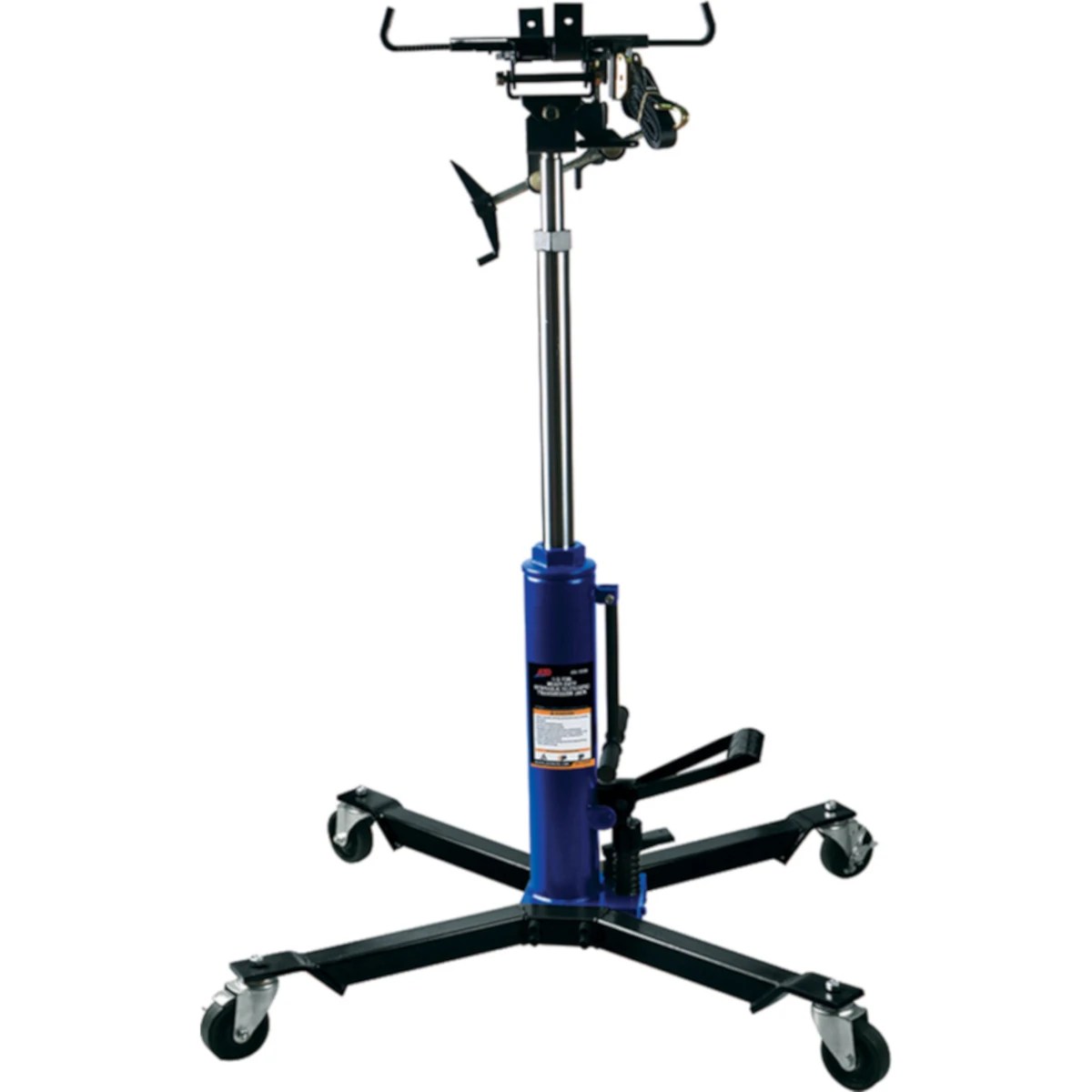

ATD 7430A 1/2-Ton Heavy-Duty Hydraulic Telescopic Transmission Jack

Extra-wide base lowers center of gravity and promotes stability Rugged 4″ polyurethane wheels for smooth and easy movement Foot release pedal provides controlled lowering of load Saddle adjusts to fit most pan configurations Chrome-plated, two-stage rams

$903.59

In stock

Extra-wide base lowers center of gravity and promotes stability

  • Rugged 4″ polyurethane wheels for smooth and easy movement
  • Foot release pedal provides controlled lowering of load
  • Saddle adjusts to fit most pan configurations
  • Chrome-plated, two-stage rams maximize the high reach
  • Nylon strap to secure transmission to jack
  • Meets or exceeds ASME PASE 2019 standards
Specifications:
  • Capacity (Ton): 1/2
  • Minimum Height: 35.24″
  • Maximum Height: 75.65″
  • Saddle Base: 7.1″ x 7.1″
  • Saddle Area Min.: 11.4″ x 11.4″
  • Expanded Saddle Area Max.: 18.7″ x 18.7″
  • Saddle range of motion: Front: 16.4° Rear: 11° Left: 36.6° Right: 35.2°
  • Shipping Weight: 187 lbs.

Additional information

Weight 187 lbs
