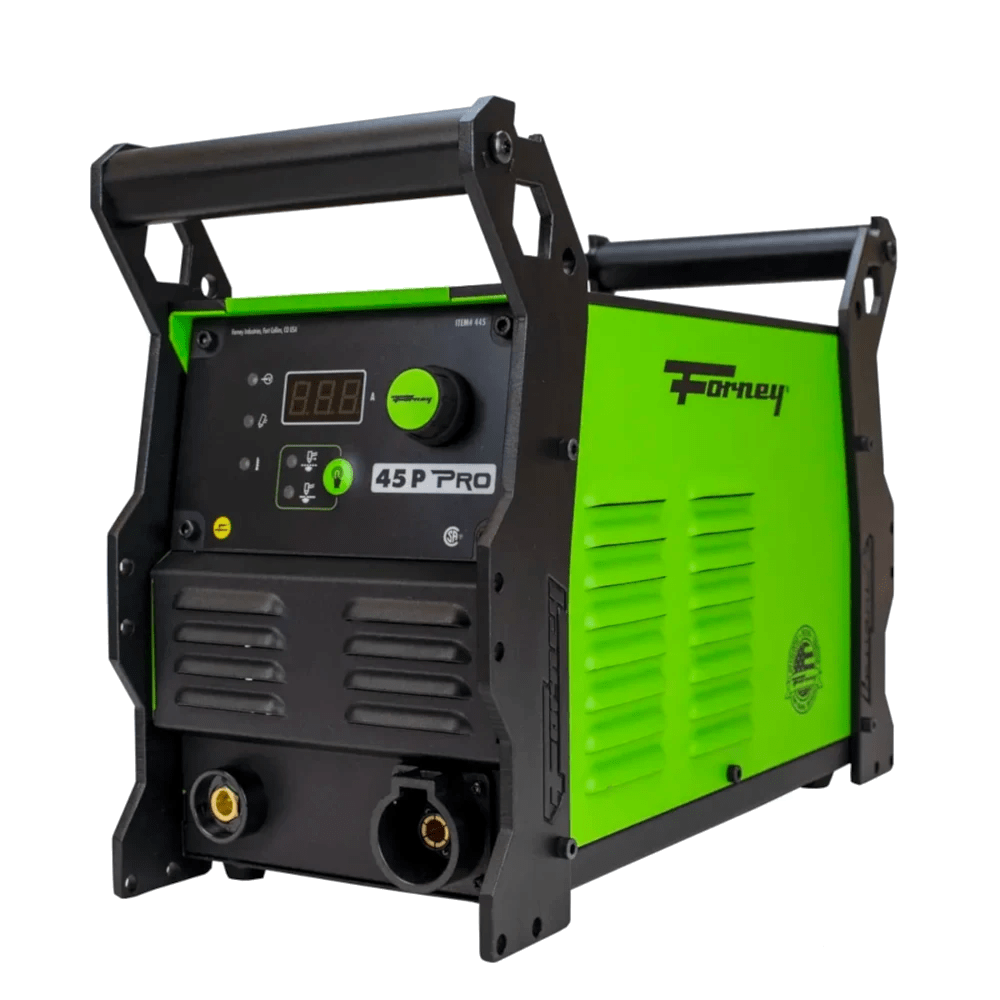

Forney Industries’ powerful, professional grade dual-voltage plasma cutter can clean cut 7/8″ (22.23 mm) at 10 in/min and sever cut 1-1/8″ (28.58 mm) at 5 in/min. With a 15ft (4.57 m) power cable, 25ft (7.62 m) torch lead and lightweight design, Forney’s 45 P Pro has one of the largest work envelopes in the industry. Forney’s 45 P Pro features an all-metal construction, quick-lock torch connection, temperature-controlled fan, and reliable inverter technology.

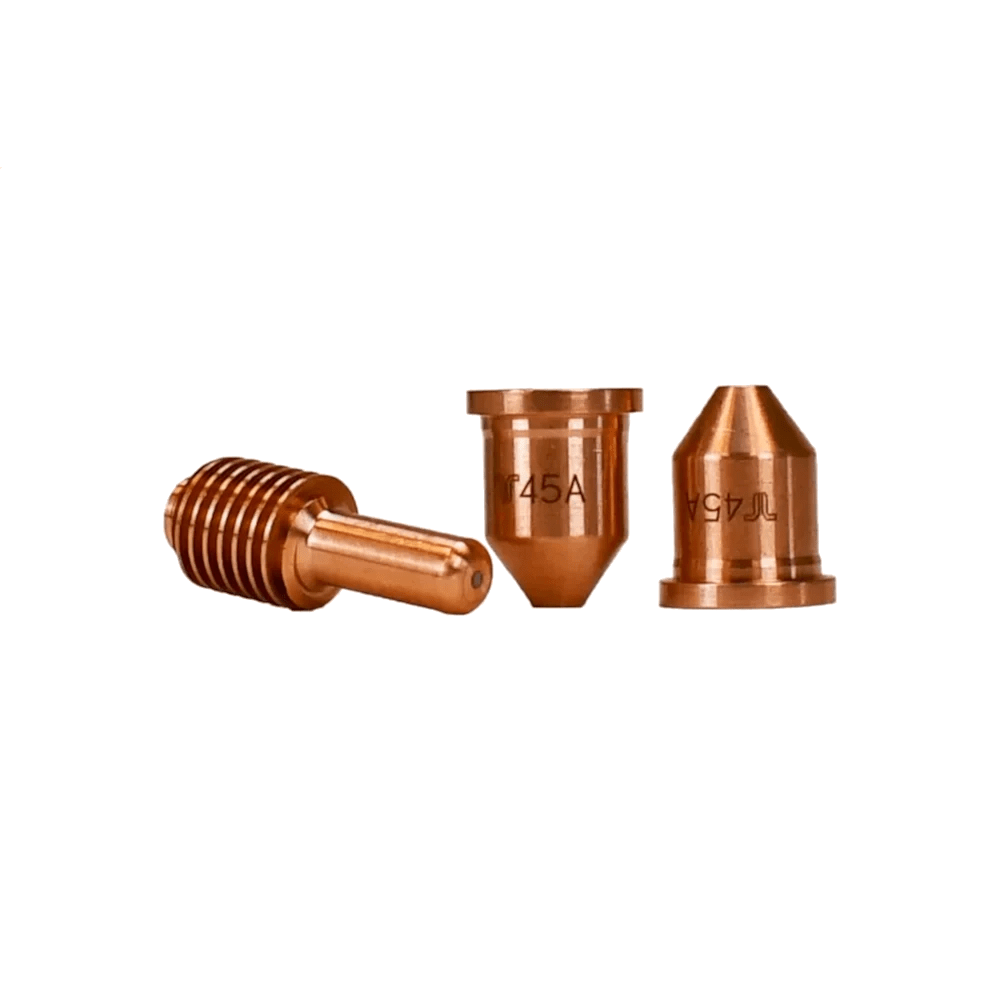

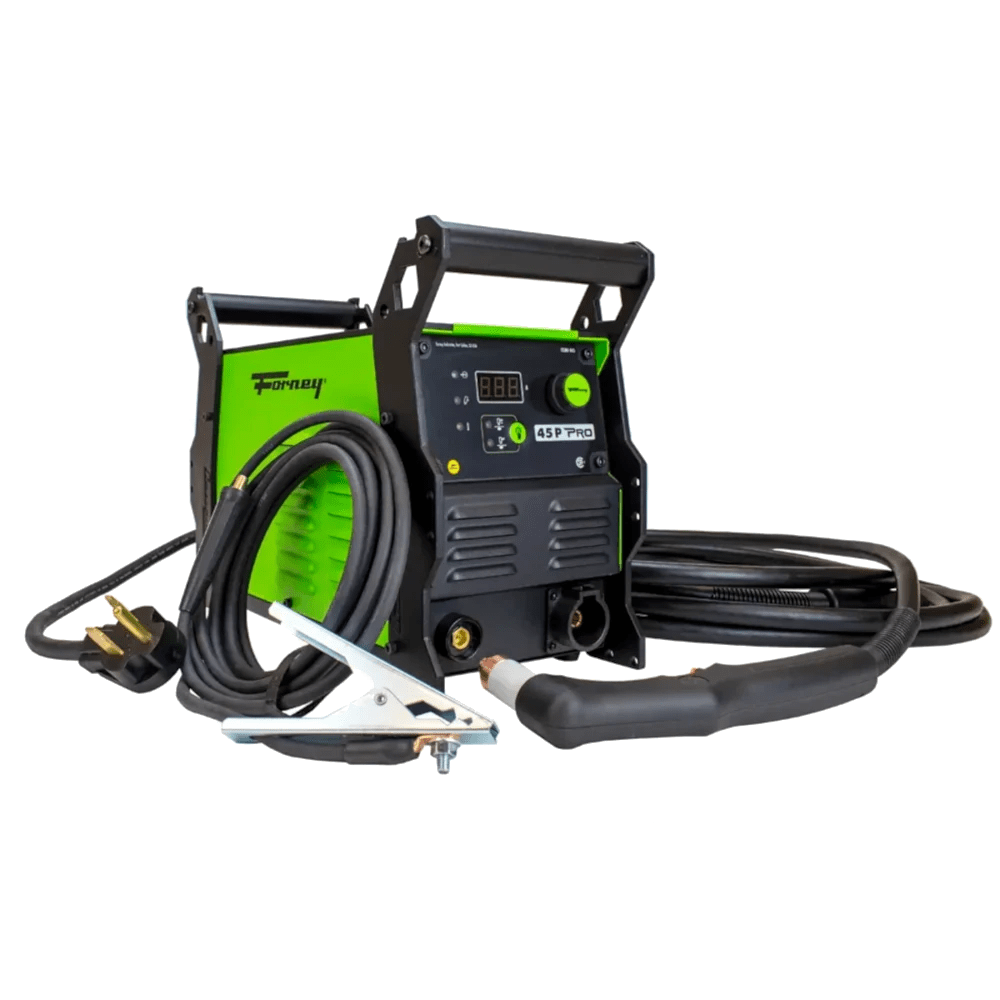

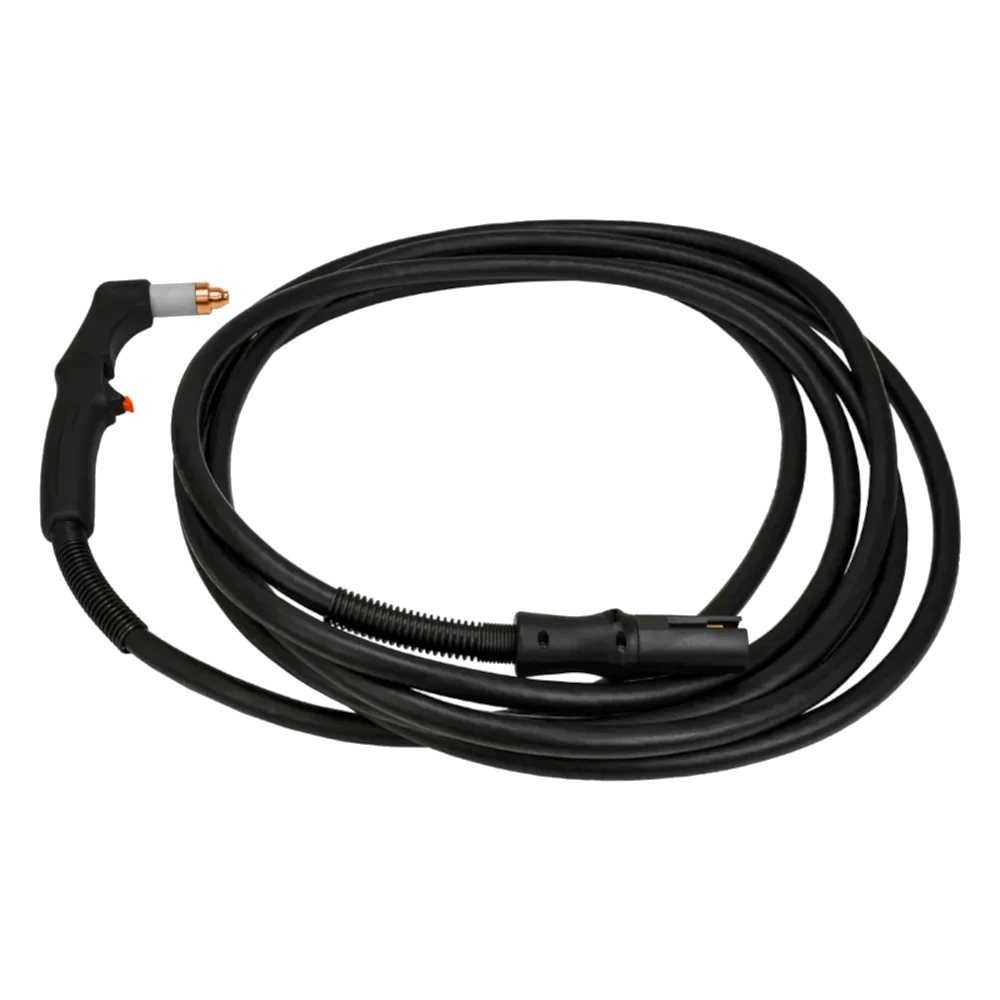

This machine can be operated using Hypertherm® compatible consumables. Forney’s 45 P comes with the plasma cutting power source, Forney® Ignite™ Plasma Torch, ground cable with ground clamp, 240V – 120V adapter cord, and consumable starter kit.
- Input Power: 120 VAC / 240 VAC, 1-Ph, 50-60 Hz
- Input Current: 120V: 14A / 240V: 14A
- Output Current Range: 120V: 15-20 AMPs / 240V: 15-45 AMPs
- Power Supply Type: Inverter
- Duty Cycle: 120V: 60% @ 20A / 240V: 40% @ 45A, 60% @ 38A
- Cut Rating – Mild Steel: 7/8″ (22.23 mm) @ 10 in/min
- Sever – Mild Steel: 1-1/8″ (28.58 mm) @ 5 in/min
- Input Power Cable Length: 15ft (4.57 m)
- Torch Length: 25ft (7.62 m)
- Ground Cable Length: 15ft (4.57 m)
- Recommended Gas Inlet Pressure: 100 – 130 PSI (6.9 – 9.0 bar)
- Recommended Gas Supply Flow Rate: 6.6CFM (188 l/min)
- Minimum Gas Supply Flow Rate: 5.8 CFM (165 l/min)
- Gas Supply Lines Minimum Inner Diameter: 3/8″ (9.53 mm)
- Certification: CSA
- Warranty: 3-year (power source), 1-year (torch)
UNIT DIMENSIONS (OUT OF THE BOX)
- Unit Weight: 31 Lbs. (14.06 Kg)
- Dimensions: 18″ (457 mm) x 7-3/8″ (187 mm) x 12-3/8″ (314 mm)
- Dual-Voltage: Provides the operator flexibility for where their machine can be used.
- Built Tough: Constructed with an all-metal case, built tough to take on the day to day.
- CSA Certified: Reduces environmental impact and ensures quality and safety.
