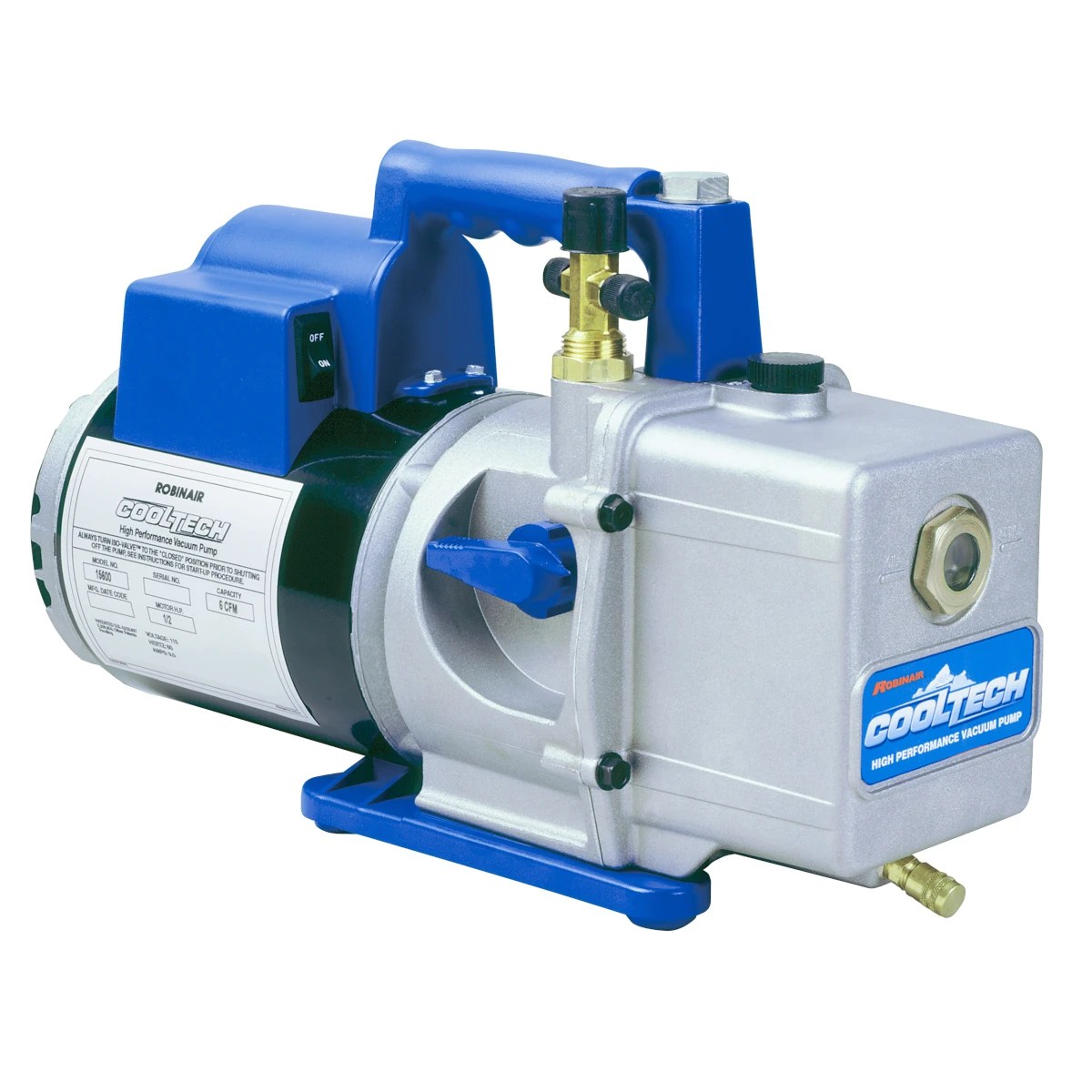

Robinair 15600 6 CFM Vacuum Pump


: $849.99 ($222.90)

Out of stock


Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

  • Iso-Valve™: Isolates the pump from the system with just a quarter-turn
  • Gas ballast: Allows moist air to pass through the pump to mix with dry air, reducing condensation
  • Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
  • 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
  • Offset rotary vanes: Unique design builds more compression, reducing system pressure and removing more moisture
  • Molded polycarbonate base: Reduces vibration and provides balance during operation
  • Angled oil drain valve: faster, more complete draining
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
  •  Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
  • Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
  • “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
  • Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
  • Not for use with ammonia or lithium bromide systems
  • Not for use with A4L or other flammable refrigerants

Additional information

Weight 27 lbs

Free air displacement 6 CFM
Factory micron rating 15 microns
Stages 2
Intake fitting 1/4" MFL, 3/8" MFL, & 1/2" MFL
Oil capacity 15 oz (445 ml)
Motor size 1/2 hp
Voltage 115V 60 Hz
Approvals UL
Dimensions : 9.75" H x 5.625" W x 15.5" L (247 mm x 143 mm x 394 mm)
Uses Up to 50 tons (176 kW) Rooftop A/C systems, tractor/trailers, buses
Cord length 6' (1.8 m)

Warranty One Year
