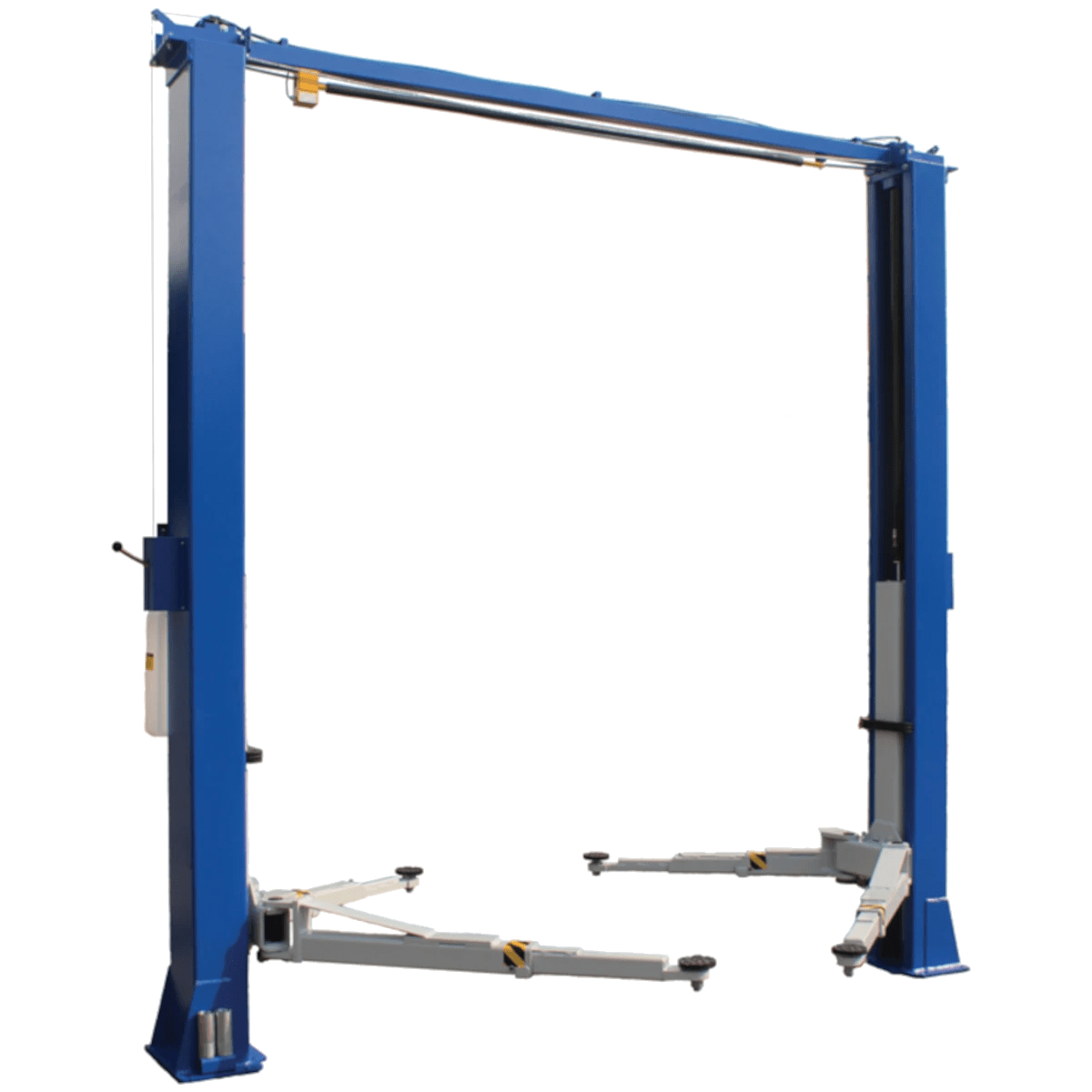

ATD 11,000 lbs. Two post Clear Floor Lift
Direct drive Spin-up pads and adapters Low profile arms Single-up pads and adapters Rubber door guards Three stage front arms Specifications: Capacity: 11,000 lbs. Height Overall: […]
$4,953.79
You save
You save
- Direct drive
- Spin-up pads and adapters
- Low profile arms
- Single-up pads and adapters
- Rubber door guards
- Three stage front arms
Specifications:
- Capacity: 11,000 lbs.
- Height Overall: 144″
- Width Overall w/ Power Unit: 137-1/4″
- Maximum Lift Height: 71-5/8″
- With Tallest Adapter: 77-5/8″
- Width Between Columns: 116″
- Minimum Pad Height: 4″
- Drive Through Clearance: 95-3/4″
- Lifting Speed: 50S
- Asymmetric / Symmetric: Asymmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach – min/max: 28-7/8″-43-7/8″
- Long Arm Reach – min/max: 49″-60″
- Cable Diameter: 3/8″
- Column Size: 7-5/8″ x 12-3/8″
- Column Steel Thickness: 5mm
- Carriage Steel Thickness: 8.5mm
- Arm Steel Thickness: 8mm
- Ship Weight: 1,705 lbs.
- Power: 220V, 20A, 1PH
*Special Order – FMT will contact you after ordering to provide approximate delivery date. Ships direct from manufacturer.
Additional information
| Weight | 1705 lbs |
|---|---|
| FREIGHT | Ships Freight. Must have a forklift for unloading. Forklift is not provided., Freight is included in price. |
