Autel MaxiSYS MS909EV Intelligent EV Diagnostics with MaxiFlash VCI/J2534

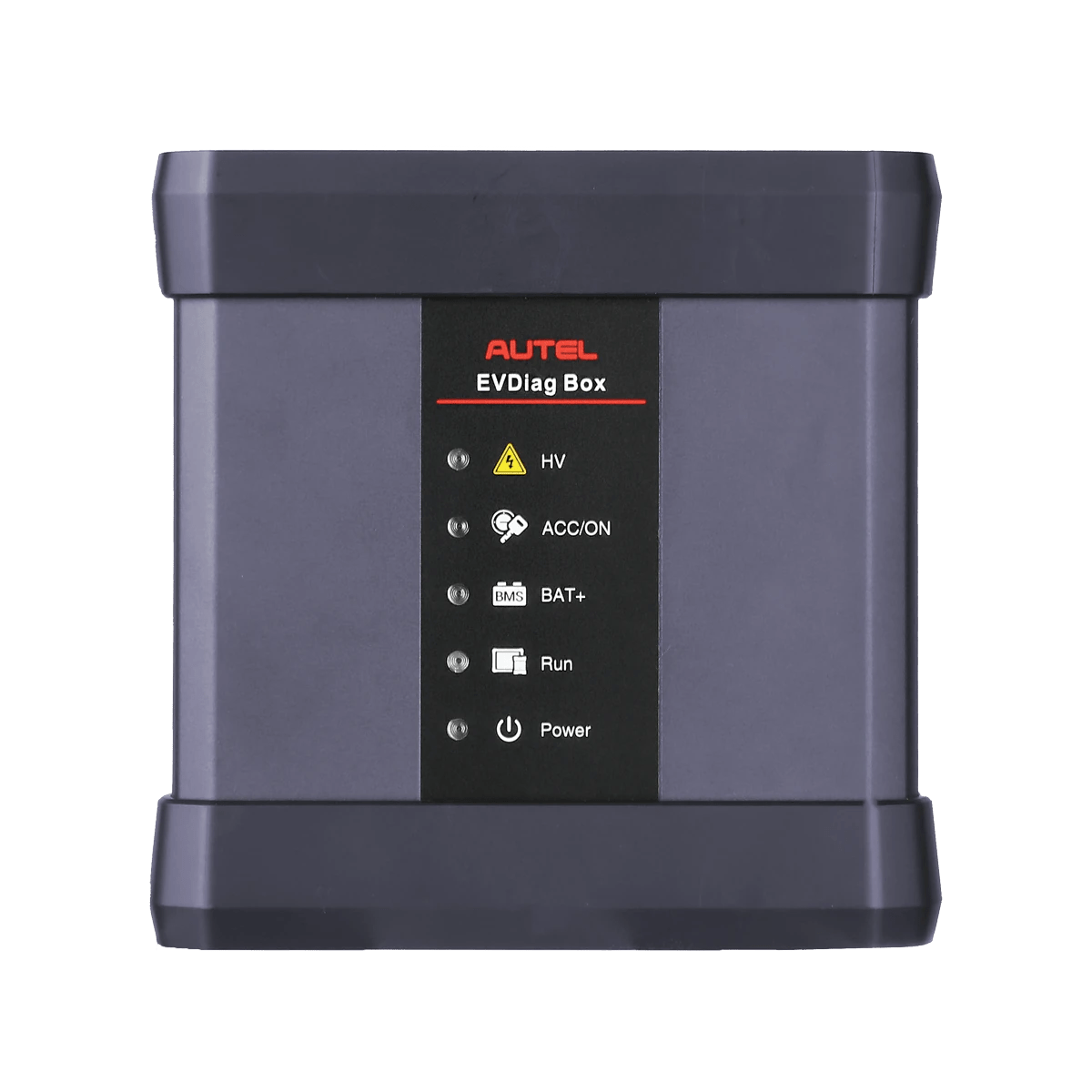

The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed […]

$4,337.89
You save

In stock

Autel MaxiSYS MS909EV Intelligent EV Diagnostics with MaxiFlash VCI/J2534
Autel MaxiSYS MS909EV Intelligent EV Diagnostics with MaxiFlash VCI/J2534 - Image 2
Autel MaxiSYS MS909EV Intelligent EV Diagnostics with MaxiFlash VCI/J2534 - Image 3
Description Additional information Reviews

The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

  • Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
  • Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
  • Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
  • State of Charge and State of Health analysis for true battery condition
  • Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Additional information

Weight 26.12 lbs
Specifications

Operating System – Android 7.0
Processor – Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory – 4GB RAM & 128GB On-board Memory
Display – 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity – Dual Wi-Fi (802.11 a/b/g/n/ac 2Ă—2 MIMO)
BT V5.0 + BR/EDR
GPS
USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
HDMI 2.0
SD Card (Support up to 256GB)
Camera – Rear: 16 Megapixel, Autofocus with Flashlight
Front: 16 Megapixel
Sensors – Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output – Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery – 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage – 12V/1.3A Adapter
Operating Temperature – 0 to 50°C (32 to 122°F)
Storage Temperature – -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) – 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight – 1.66kg (3.66 lb.)
Protocols – oIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
