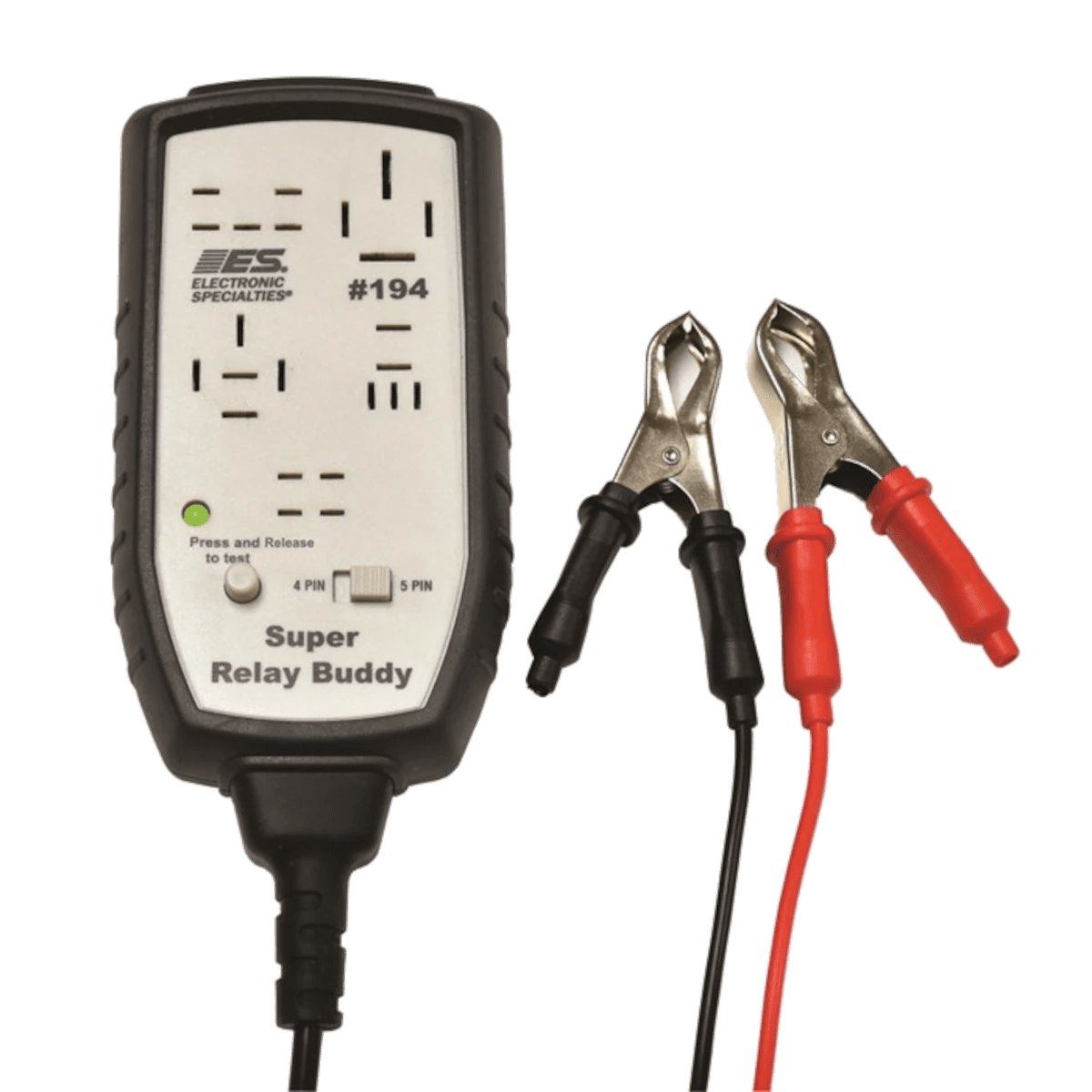

Super Relay Buddy is the next generation tester for 12 volt automotive relays!

• It applies a 7+ amp load to the relay and looks for excessive voltage drop
• Test results are displayed by the green, red, or yellow LED
• Super Relay Buddy® #194 can test 6 different types of relays
• Super Relay Buddy’s® most significant feature is the 7+ amp load during the test. This function will help find many relays which only fail under significant load, ensuring a higher diagnostic success rate.

Applications:

• Automotive
• Heavy Duty
• Marine
• RV
• Equipment

Features:

• Improved test finds bad relays effectively
• Full 7+ amp load flags intermittent failing relays
• Automatic 10 cycle test of the relay
• Check 7 different 12 volts relays (#194)
• Easiest and fastest way to check relays

Test Specifications:

• Settable to 4 and 5 pin relay
• Uses vehicle 12V battery for power
• Green light if relay is good
• Red light if relay is bad
• Yellow – pass w/caution, some voltage drop
• Switch contacts are loaded to 7+ amps
• Tests 12 volt relays
