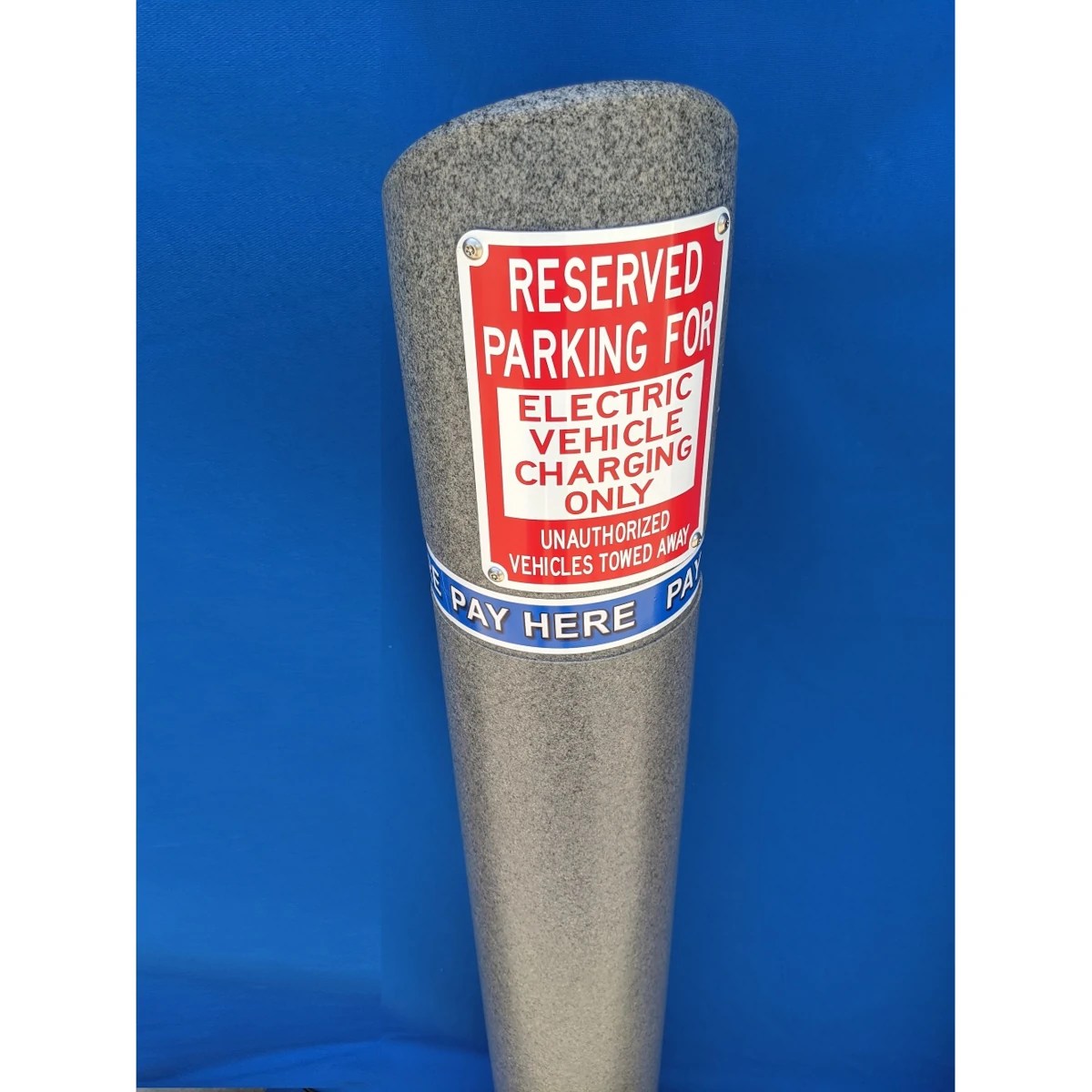

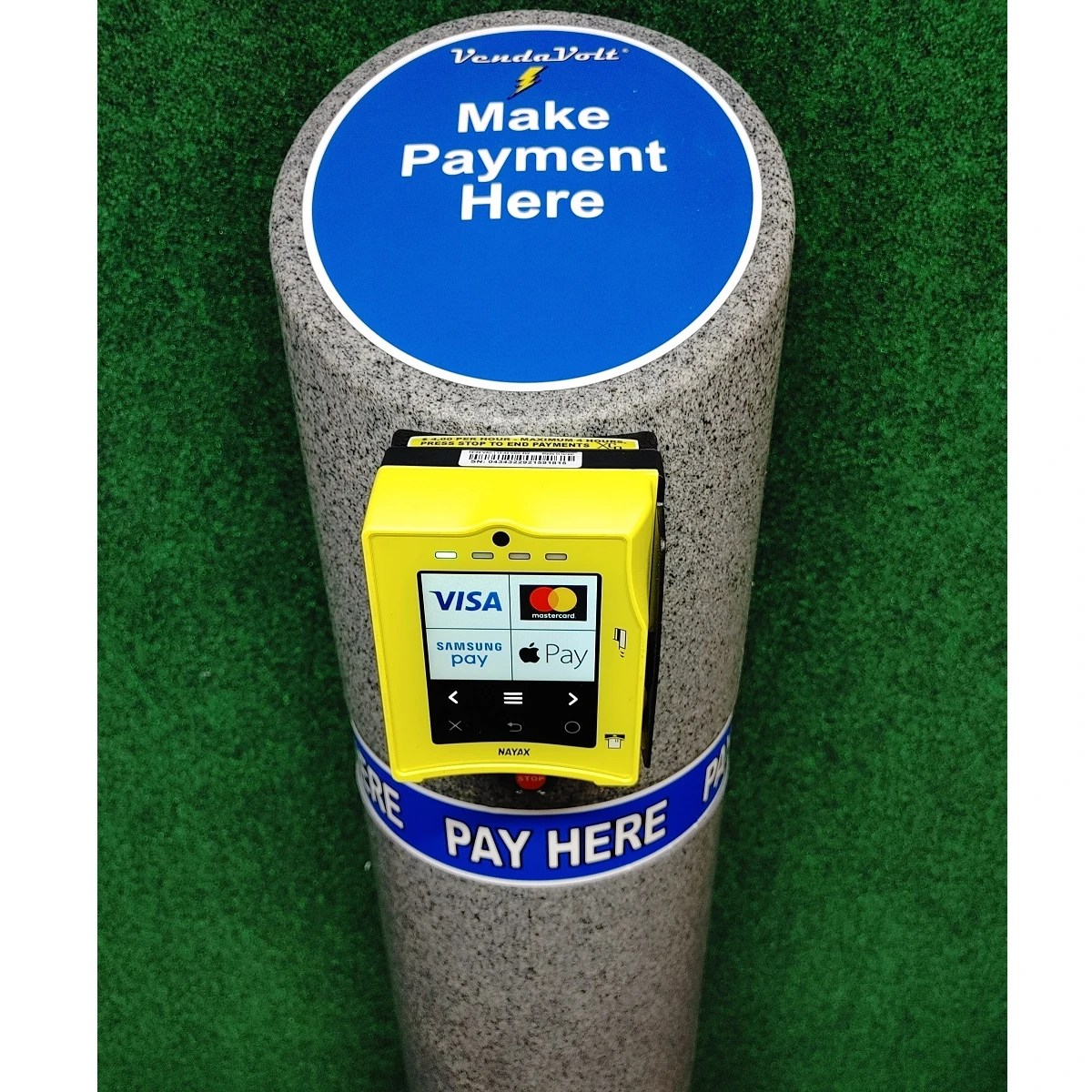

The VendaVolt Nayax Vpos Touch Single Cashless Timer Payment Station is designed to vend time for connection of electricity between the electrical input from the host 40A circuit breaker panel to one electrical devices such as any of the Bosch EV800 Series Electric Vehicle Chargers. Easy connection between from the host 40A electrical panel circuit breaker over to the 12-32A host electrical machine. Bolt the 7 inch diameter 1/4 inch thick steel pipe to the concrete slab location and slide the 54 inch tall sleeve over the pipe. Secure with tamper proof security screws. (Note: Does not include the Bosch EV800 Electric Vehicle Charger)

Can be connected to vend time on 110~120 volt or 208~240 volt electrical devices. Connect the black (L1) and white (L2) to 208~240 volts AC, or connect the black to 110~120 volt hot and the white conductor to common (N).

The VendaVolt Nayax Vpos Touch 12-32 Amp Dual Cashless Timer Payment Station is powered by one (1) cashless terminal. The Nayax terminal is a universally certified Nayax EMV & PCI compliant solution designed to provide the financial services and latest technology in order to maximize the benefits of cashless payments, along with a steady & accurate stream of telemetry date designed to provide vending machine operators with the ability to centrally manage their operations from one application.

Included with the purchase of the VendaVolt Nayax Cashless Payment System is a “Free” Nayax Dashboard. Allows you to track your sales, change prices and text information on the display.

The one (1) VPOS smart readers are EMV level 1 and 2, swipe, and contactless approved.

The kit includes:

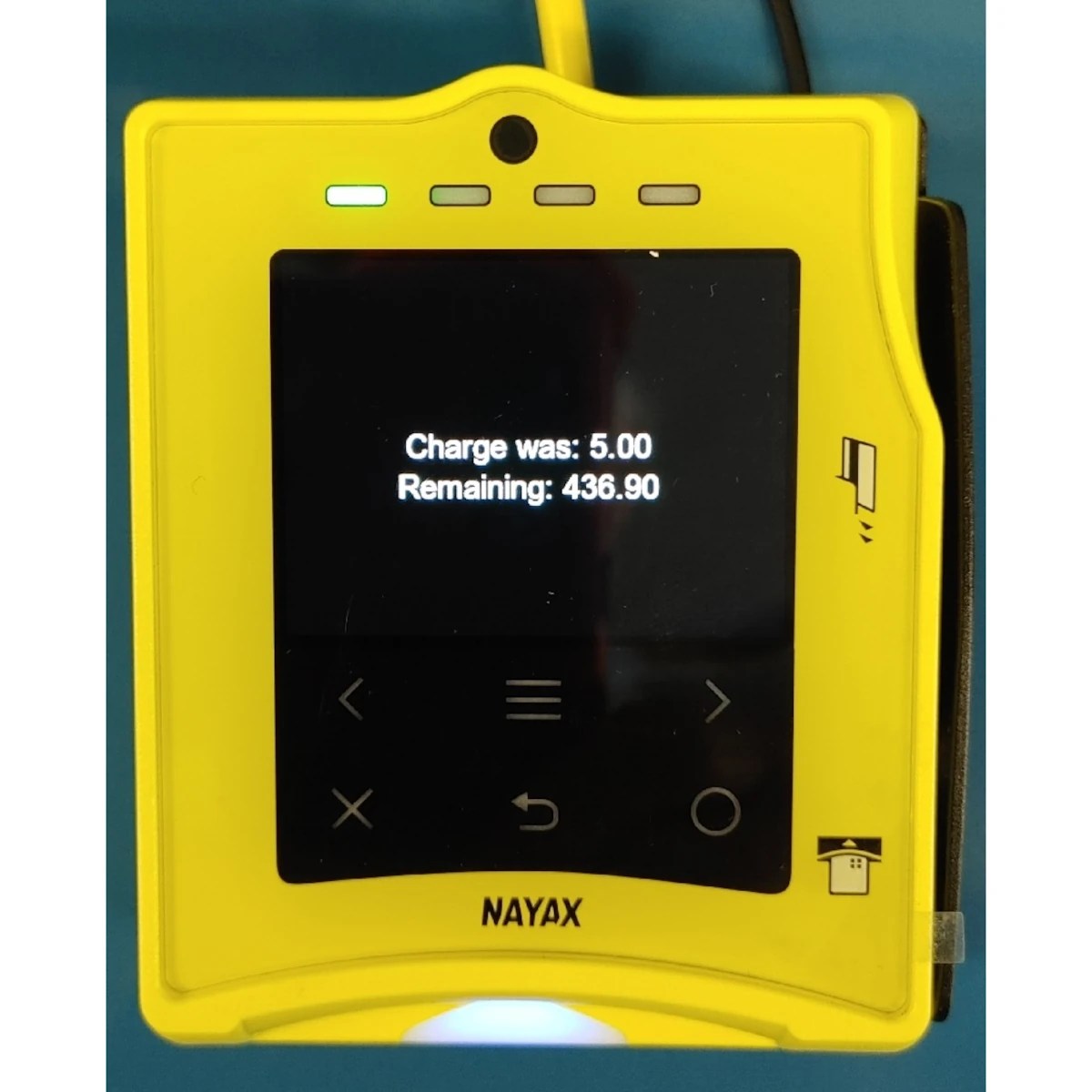

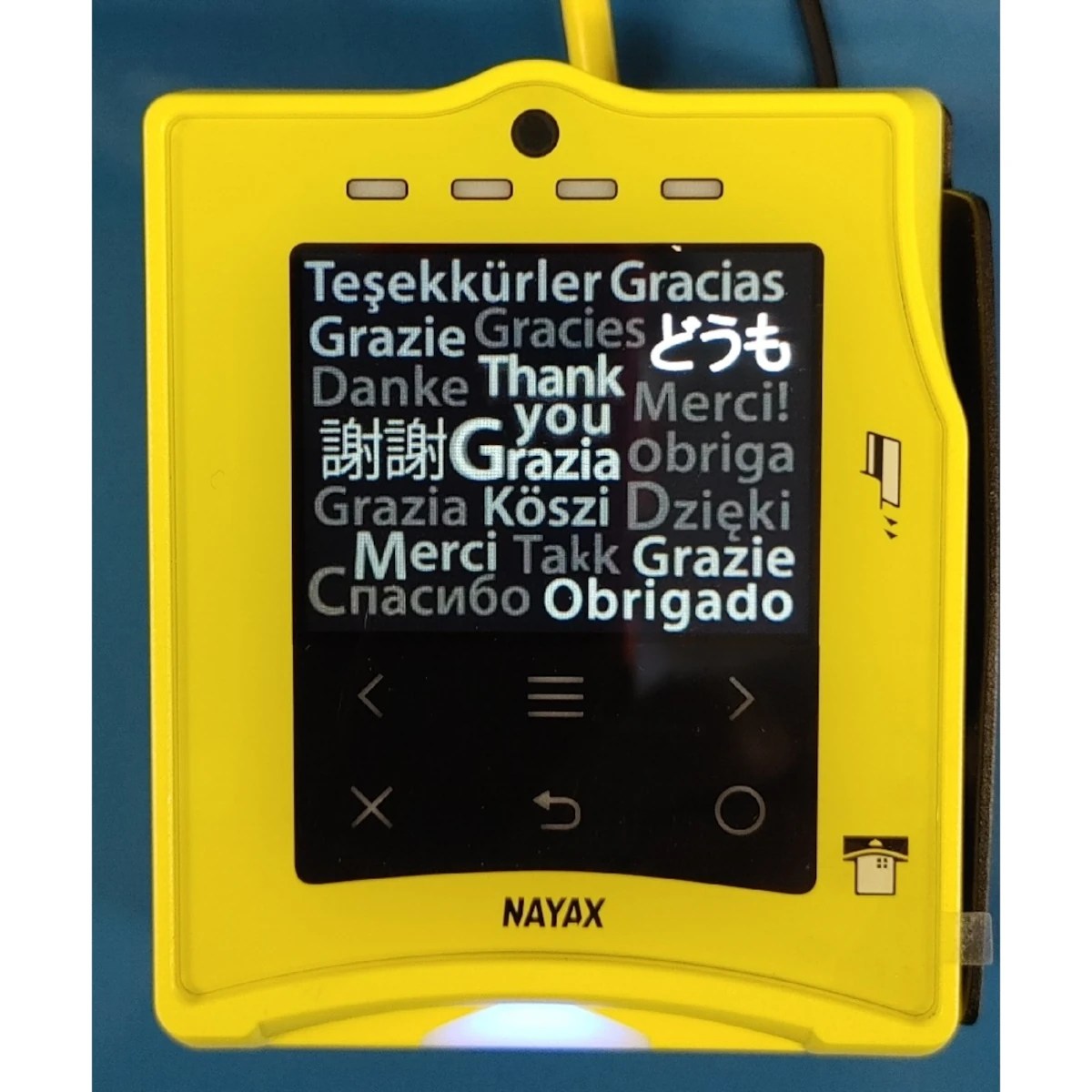

One (1) Nayax Vpos Touch Card Reader Device

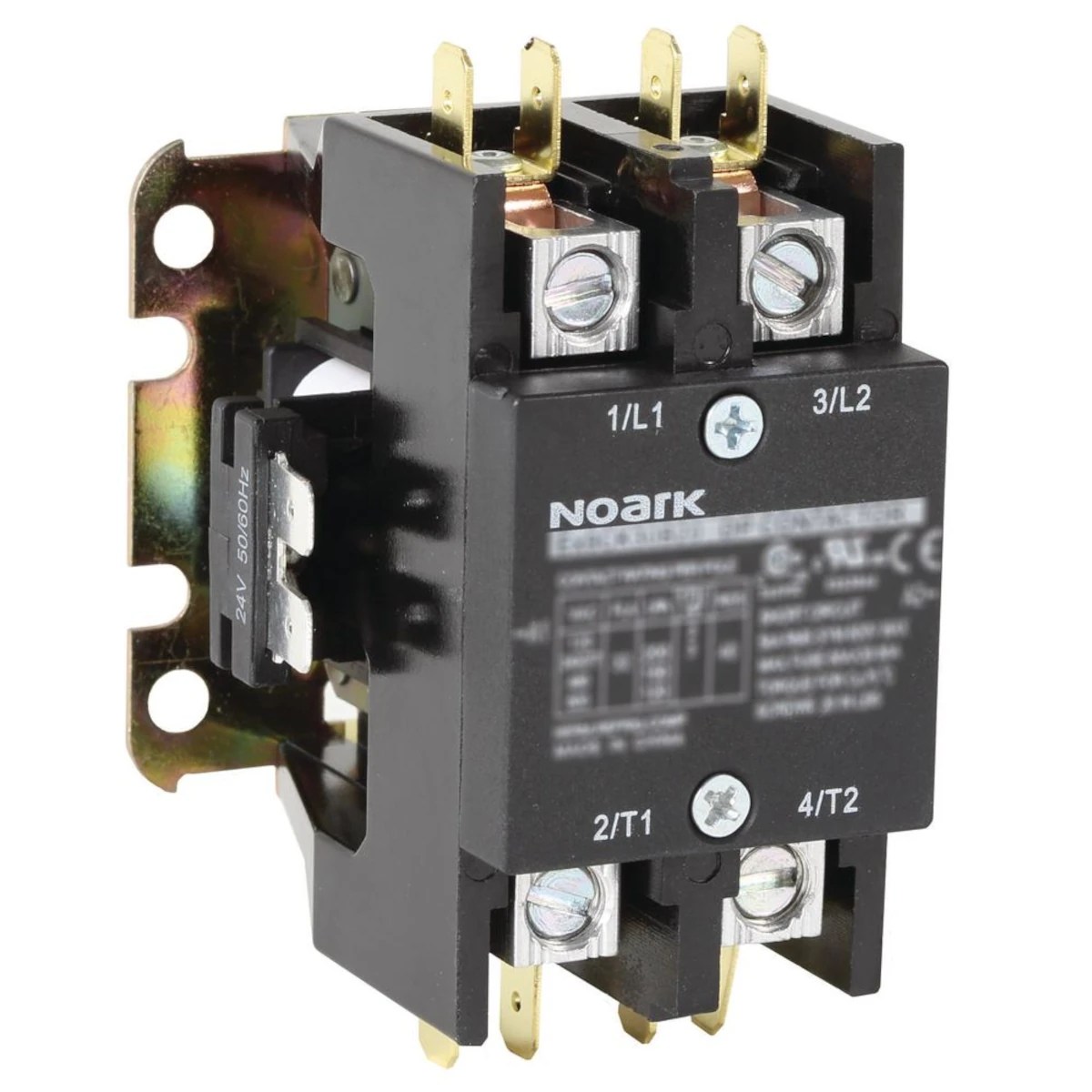

One (1) of the U.L. listed 40 Amp Double Pole Single Throw Power Contactor Relay

One (1) 10 Gauge 3 conductor 10/3 input and output electrical rubber coated power cable

Steel 1/4 inch thick x 18 inch tall steel internal protective pipe base.

One (1) Magnetic Mount Antennas & 3M cables (screw in SMA Connector)

One (1) Pulse Mode Harness

One (1) DEX (1/4 inch male Jack & female socket in a “Y” cable)

One (1) VendaCard Rfid Pass Cards

One (1) NEMA Enclosures

One (1) Nayax modems powered by 12V U.L. listed water proof power supply

Includes of one (10 10 gauge 3 conductor electrical cable from the VendaVolt 40A output power cord that is connected to the VendaVolt internal DPST 40A contactor relay to be connected to the host circuit breaker panel via a 8 gauge wired power source. Can be also connected for 110~120 volt operation.

This product price does not include UPS shipping fees and only refers to the price of the item itself. A Nayax $30.00 setup and processing fee is invoiced separately after shipment of the VendaVolt.
