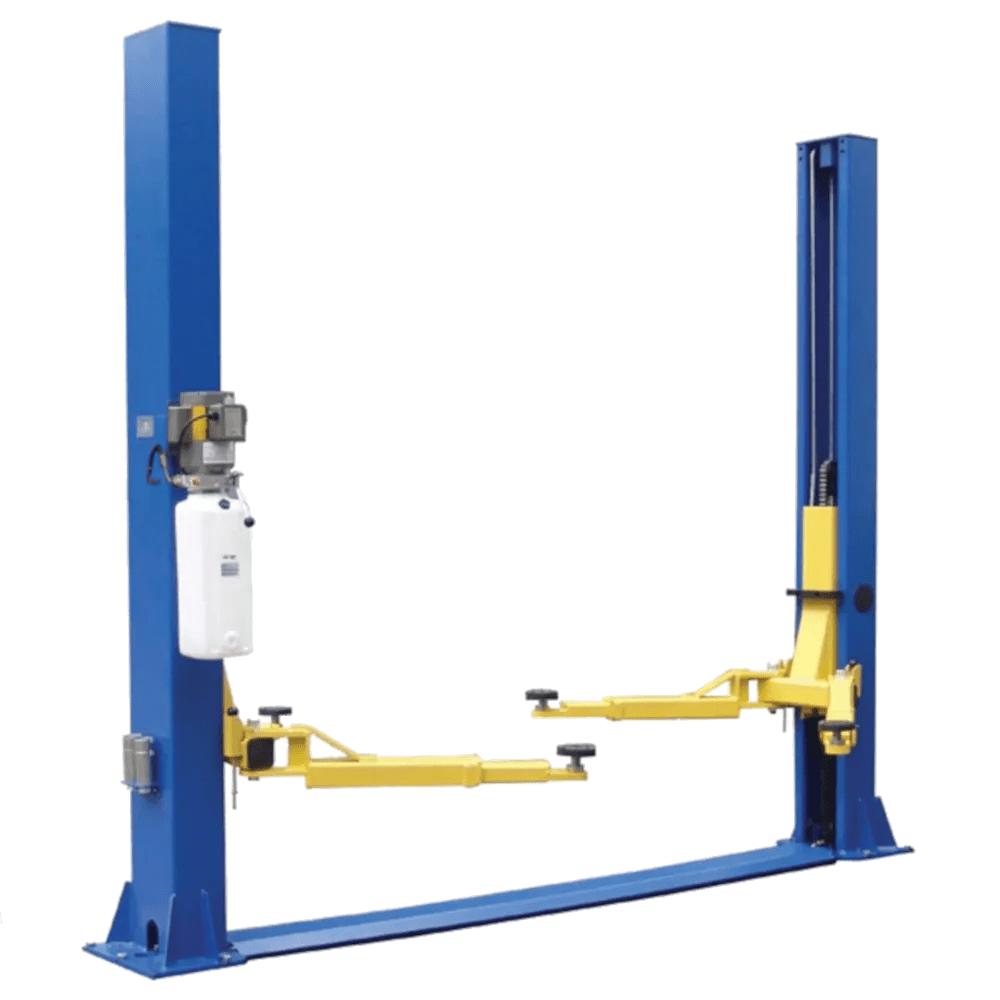

ATD 9,000 lbs. Two Post Floor Plate Lift
- Chain driven
- Spin-up pads and adapters
- Low profile arms
- Rubber door guards
$4,016.59
- Chain driven
- Spin-up pads and adapters
- Low profile arms
- Rubber door guards
Specifications:
- Capacity: 9,000 lbs.
- Height Overall: 111-7/8″
- Width Overall w/ Power Unit: 134-5/8″
- Maximum Lift Height: 72″
- With Tallest Adapter: 77-1/2″
- Width Between Columns: 110-3/8″
- Minimum Pad Height: 4″
- Drive Through Clearance: 101″
- Lifting Speed: 50S
- Asymmetric / Symmetric: Symmetric
- Clear Floor / Floor Plate: Floor Plate
- Short Arm Reach – min/max: 31″-45″
- Long Arm Reach – min/max: 31″-45″
- Cable Diameter: 3/8″
- Column Size: 7-1/4″ x 10-7/8″
- Column Steel Thickness: 5mm
- Carriage Steel Thickness: 5mm
- Arm Steel Thickness: 6mm
- Ship Weight: 1,270 lbs.
- Power: 220V, 20A, 1PH
Special Order – FMT will contact you after ordering to provide approximate delivery date. Ships direct from manufacturer.
Additional information
| FREIGHT | Ships Freight. Must have a forklift for unloading. Forklift is not provided. |
|---|
