Autel AutoLink AL529HD – Heavy Duty Engine Code Reader


: $155.99 ($38.50)

In stock

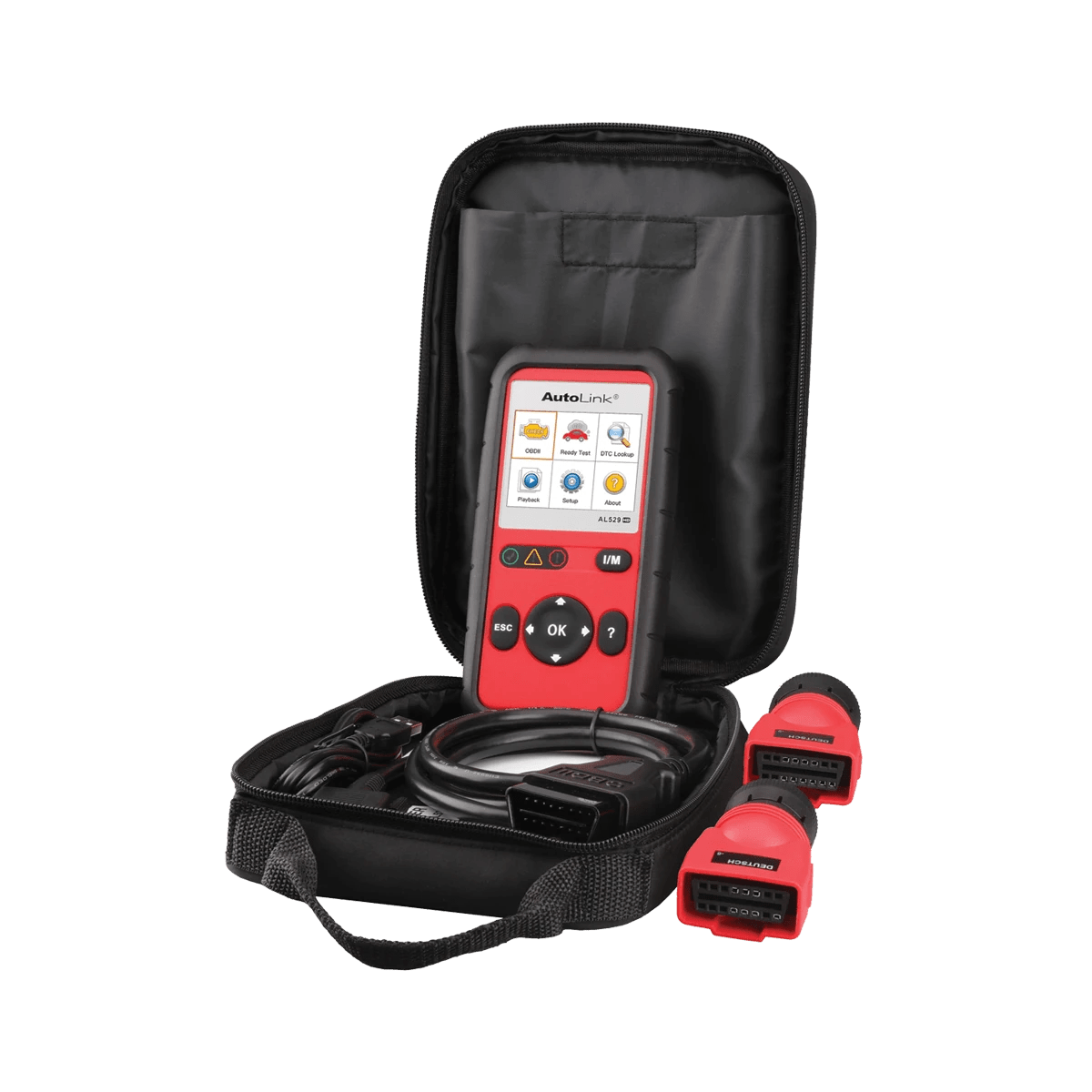

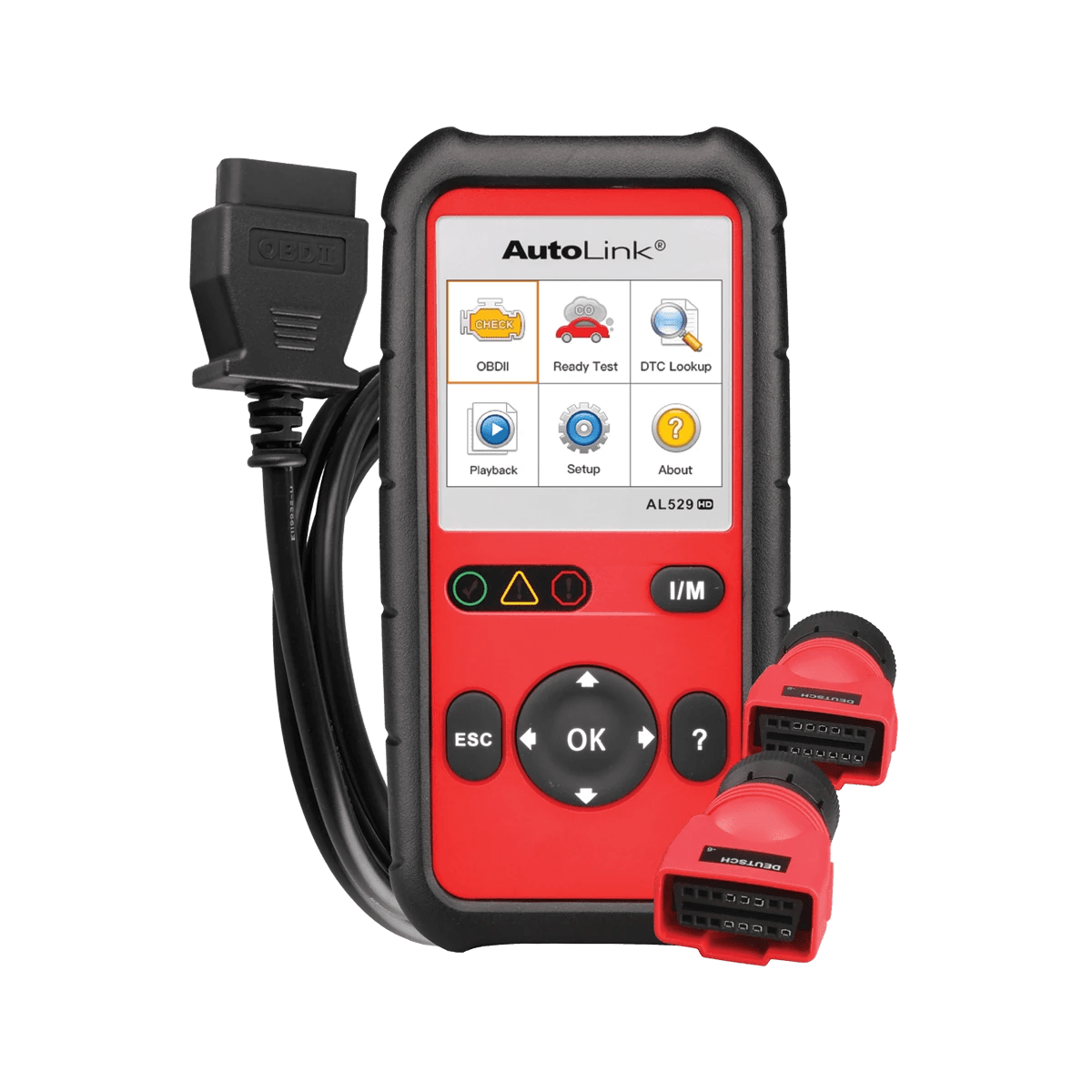

The AutoLINK AL529HD is a heavy duty engine code reader for vehicles class 1 (0-6,000LBS) – class 9 (33,000LBS). It can read and erase heavy duty engine DTCS, supports J1939 and J1708 heavy duty protocols, can graph/record/playback live data, and display live and freeze frame data. The AL529HD supports all 10 OBDII test modes, has one-click I/M readiness/emissions testing and has enhanced Mode 6 diagnostics. It is updatable via PC, and includes a color screen, Deutsch 9-pin and Deutsch 6-pin connectors, and an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.

  • Read/ Erase Heavy Duty Engine DTCs
  • Class 1-9 Commercial Vehicles
  • Includes Deutsch 9-Pin & 6-Pin Adapters
  • Supports J1939 & J1708 HD Protocols
  • One-Touch I/M Readiness/ LED Indicator
  • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
  • Support All 10 OBDII Test Modes
  • Enhanced Mode 6 Diagnostics
  • Graph, Record & Playback Live Data
  • Display Live & Freeze Frame Data
  • Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
  • Includes OBDII Cable
  • Easy-To-Use Navigation /Software Updates via PC
  • Full Color Display 320×240
  • Save Files with Micro SD Card (not included)

Additional information

Weight 2.3 lbs
