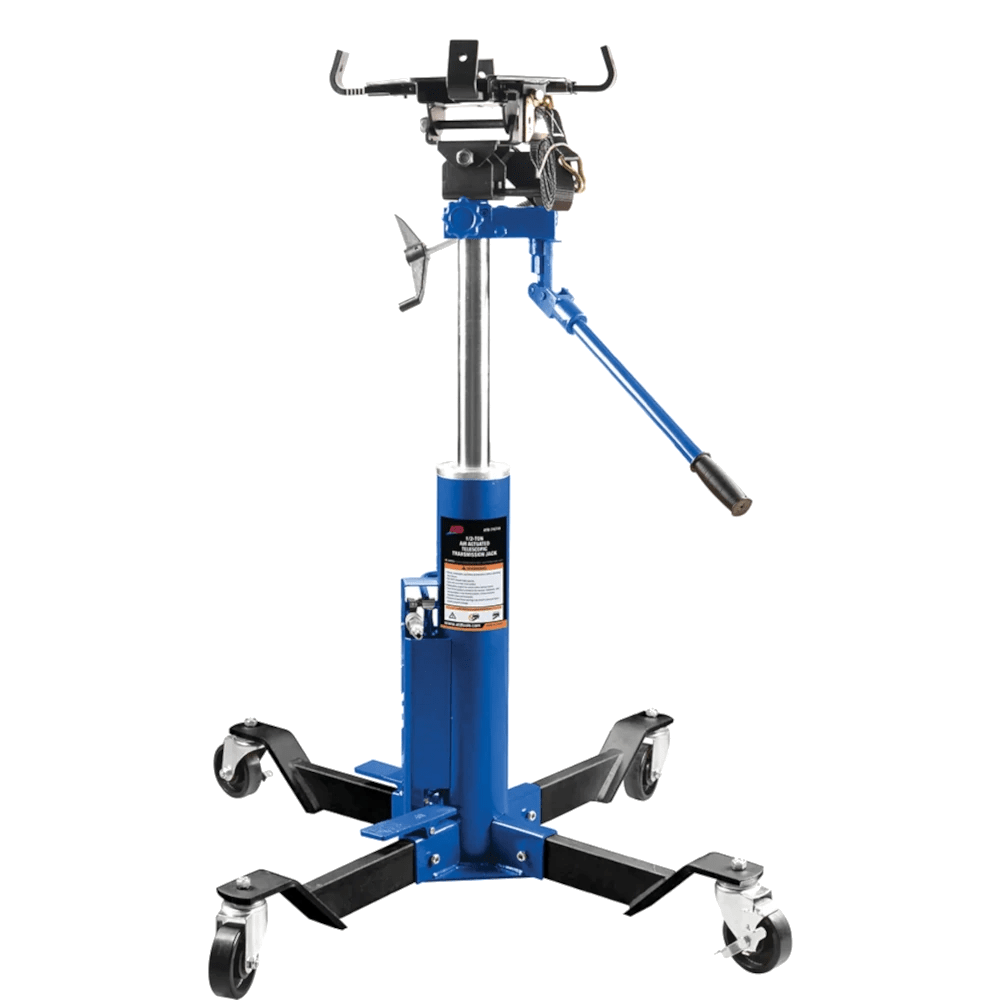

ATD 7431A 1/2-Ton Air Actuated Telescopic Transmission Jack

$1,070.30

In stock

Worldwide shippingTaxes and duties are the responsibility of the customer.
Secure paymentPayments are processed securely through Square.
Fat Monkey BucksSign up and earn credits on every order.

Description

  • Extra-wide base lowers center of gravity and promotes stability
  • Rugged polyurethane wheels for smooth and easy movement
  • Foot release pedal provides controlled lowering of load
  • Adjustable saddle for quick adjustment for most pan configurations
  • Chrome-plated, two-stage rams maximize the high reach
  • A compact, yet powerful Air Motor is equipped to raise the load to the desired height efficiently, effortlessly and safely
  • Nylon strap to secure transmission to jack
  • Meets or exceeds ASME PASE 2019 standards
Specifications:
  • Capacity (Ton): 1/2
  • Minimum Height: 35″
  • Maximum Height: 73.5″
  • Saddle Area Min.: 7.1″ x 7.1″
  • Expanded Saddle Area Max.: 18.7″ x 18.7″
  • Saddle range of motion: Front: 16.4° Rear: 11° Left: 36.6° Right: 35.2°
  • Air Pressure: 101-145 psi
  • Shipping Weight: 165 lbs.

Additional information

Weight192 lbs
Dimensions16.1 × 33.1 × 21.7 in
